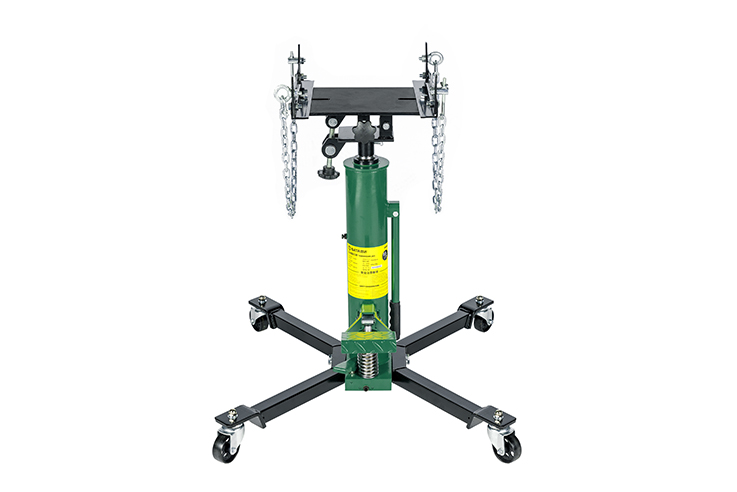

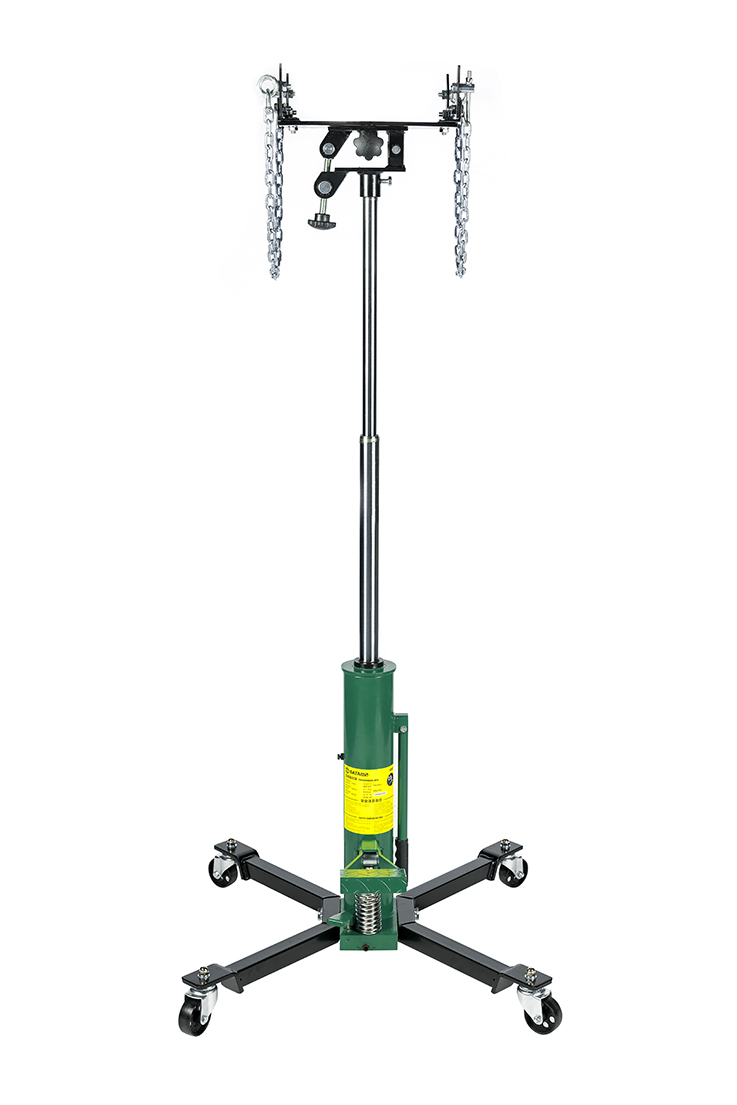

SATA SCAE5821 แม่แรงยกเกียร์สูง 0.5 ตัน
0.5T Gearbox Carrier
Introduction
● Safety valve design, ensuring less worry on safety
● High quality special hydraulic oil with the min. allowable temperature of -45°C
● Sophisticated workmanship, and chrome-plated pump core and piston rod
● Classic structure, specially-designed piston rod dust ring and pump core dust boot
Product No |
AE5821 |
MADE IN |
China |
Rated load(ton) |
0.5 |
Piston rod stroke level 1(mm) |
475 |
Piston rod stroke level 2(mm) |
475 |
Min#Height(mm) |
812 |
Ma# Height(mm) |
1760 |
Wheel |
Cast iron wheel |
Net Weight(kg) |
51.2 |
Gross weight(kg) |
64 |
Package size(CM) |
49×31×77 |
Warranty information |
Oil pump, oil cylinder 6 months warranty |
