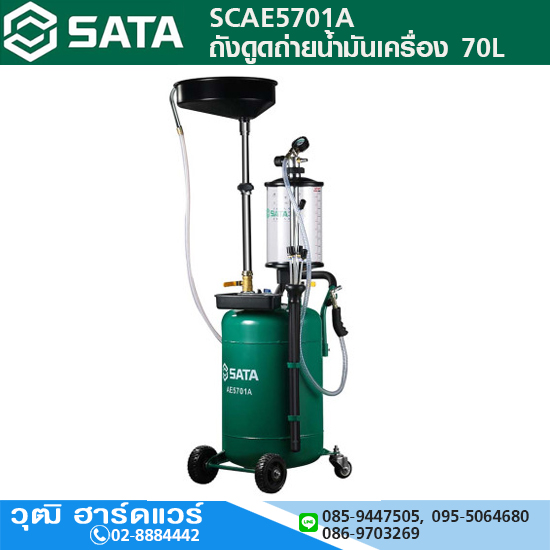

SATA SCAE5701A ถังดูดถ่ายน้ำมันเครื่อง 70L
Oil Collecting Machine With Measuring Cup
Introduction
● High corrosion resistance measuring cup, anti cracking anti oil leakage,
acid and alkali resistance
● Cover sealing design, leakage prevention, strong pressure resistance
● Manual balance pressure, can be a separate measuring cup vacuum
● High smoothness of measuring cup, waste oil is not easy to hang on the wall
| Product No |
AE5701A |
| Bearing roller, durable |
Yes |
| Two-section extension rod, providing better sealing |
Yes |
| SATA designed tool tray, easy for tool collection |
Yes |
| Automatic welding, with stable and reliable quality |
Yes |
| Ergonomic handle, comfortable to use |
Yes |
| Eccentric oil tray, increasing collecting range |
Yes |
| Armrest protector, comfortable operation |
Yes |
| High corrosion resistance measuring glass, anti-cracking, anti-leakage oil and acid and alkali resistance |
Yes |
| Equipped with a safety valve, if misoperation occurs, the safety valve will discharge immediately, protecting the measuring glass from being damaged by high pressure |
Yes |
| Manually equalize the air pressure and can be vacuumed by a separate measuring glass |
Yes |
| Measuring glass |
10L |
| Drainage radius |
294mm |
| Air source |
8-10bar |
| Overall Height |
1390mm |
| Extraction speed |
3L/min |
| Packaging |
Cardboard box |
| Warranty |
1 year for the machine |
| |
3 years for the measuring cup |
| Vacuum of 0.85bar for fast pumping speed |
Yes |
| Oil tank |
70L |
| Ultimate vacuum |
Over -0.8bar |
| Net Weight (kg) |
29 |
